four π loudspeaker performance data

four Pi loudspeaker



Our four "π" loudspeaker is the result of decades of refinement and hundreds of hours of extensive development and testing. It provides high-fidelity and uniform directivity, and is efficient enough to provide room-filling sound even when driven by low-powered single-ended triode amplifiers. It also has the thermal capacity to handle several hundred watts of amplification without distortion or stress. This wide range of power levels provides exceptional dynamic range, making the four "π" loudspeaker suitable for critical listening, studio monitoring and home theater applications.

We recommend these speakers to be set on stands at ear-level with toe-in that crosses the forward-axes just in front of the listening position. This gives the best stereo image.

We also suggest placement away from walls but room limitations often require the speakers to be set near a wall, usually the one behind the speakers. Flanking subs can be employed to mitigate lower-midrange reflections. Bass extension is more than adequate with or without subwoofers, but the use of flanking subs smooths the modal region while simultaneously increasing deep bass extension.

Frequency Response

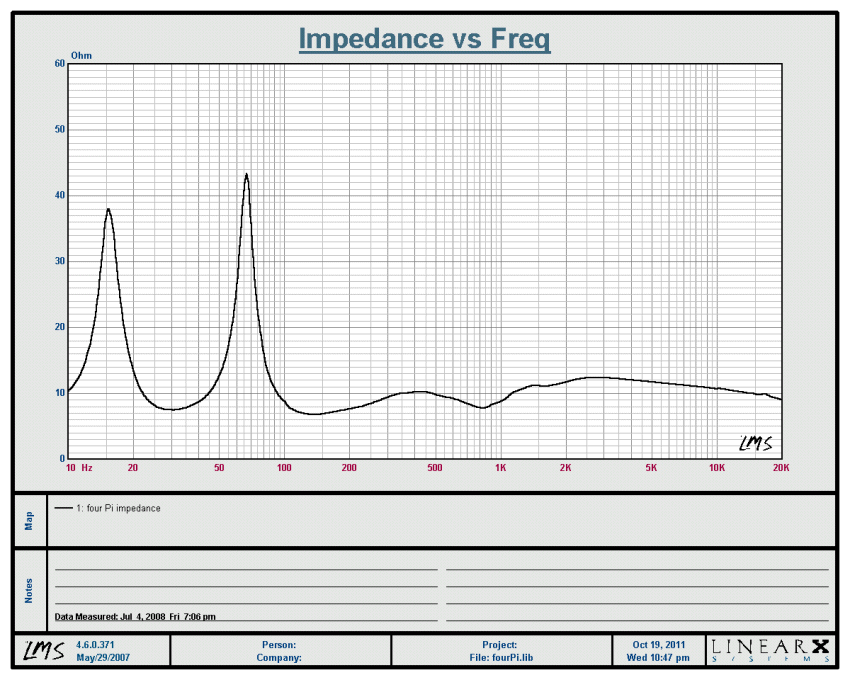

Impedance

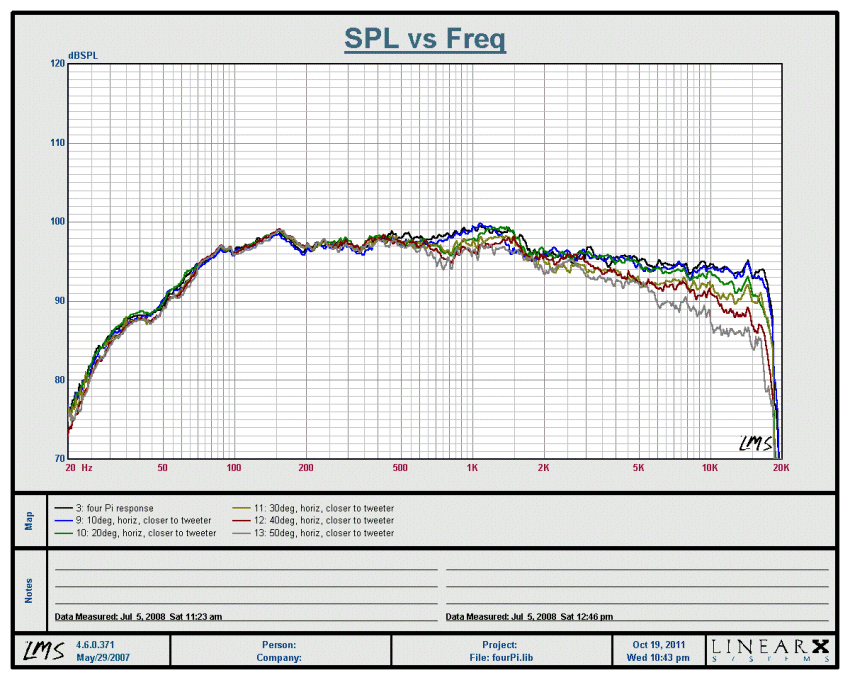

Horizontal Off-Axis Response (tweeter side)

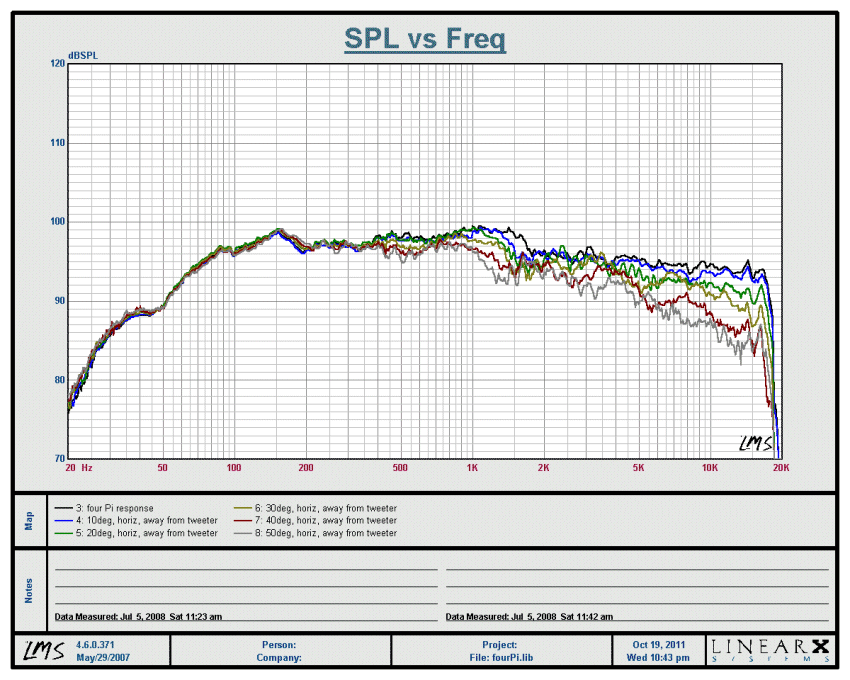

Horizontal Off-Axis Response (port side)

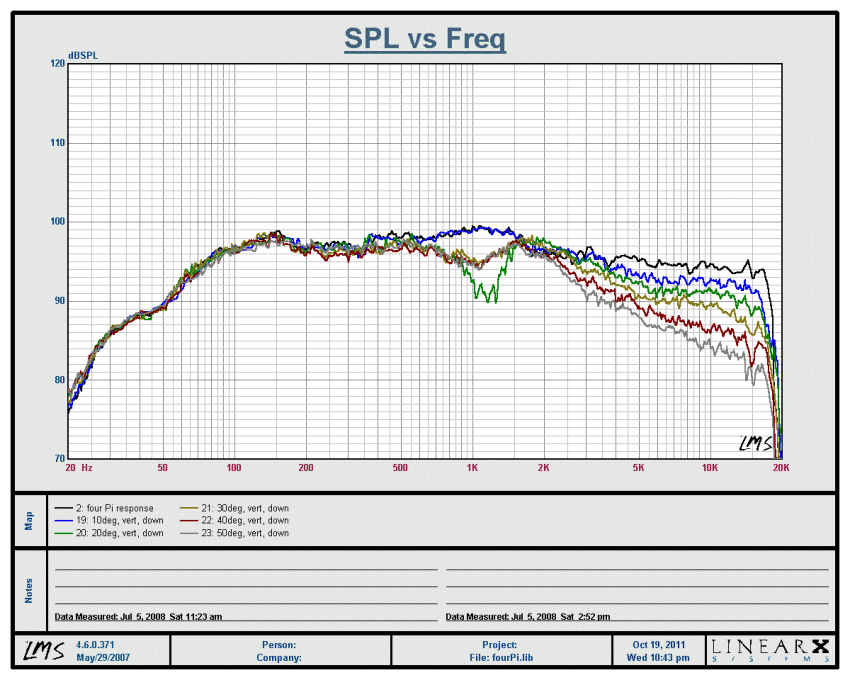

Vertical Off-Axis Response (down)

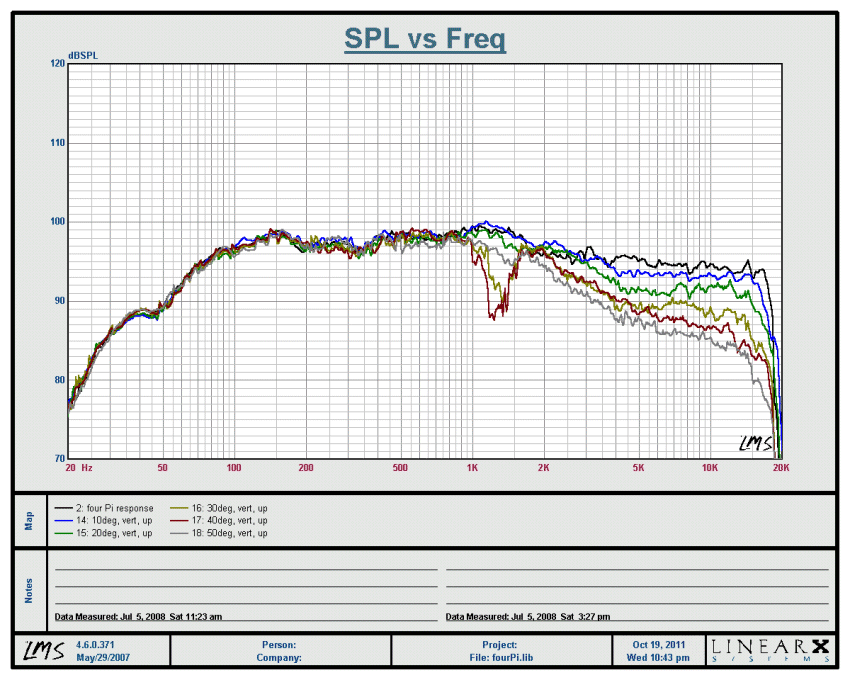

Vertical Off-Axis Response (up)

Notes:

  • All measurements were done halfspace, with the speaker resting in a cradle and the microphone suspended above it on a boom.
  • No post-processing or smoothing was applied.
  • Measurements were taken at a distance of 10 feet from the baffle and drive voltage was 8.62vrms. This is equivalent to 2.83v/M and 1W/1M values since average impedance is 8Ω.
  • The loudspeaker was driven with a 60Hz sine at 40vrms to pre-heat for 15 minutes immediately before measurement. This was done to bring it to a realistic operating temperature.
  • Off-axis measurements were done at 10° increments. The forward axis was taken as the cabinet centerline, midpoint from top to bottom and side to side. Small vertical angles upward therefore position the microphone closer to the tweeter's forward axis.
  • The tweeter is offset horizontally relative to the cabinet centerline, so horizontal off-axis measurements are slightly different in one direction than the other. One direction has the tweeter slightly closer, the other has the woofer slightly closer.
